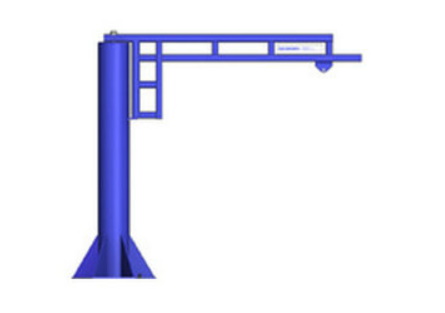

GORBEL Combined self-supporting jib crane / MSJ360

高博组合式自立旋臂起重機 / MSJ360

高博組合式旋臂起重機（MSJ360）是傳統、笨重的工字鋼旋臂起重機的完美替代品。

旋臂起重機提供了對圓形工作區域內良好的工作覆蓋，並支持工具平衡器、氣動平衡器、真空提升工具和葫蘆等。

採用地面安裝方式時，該旋臂起重設備可實現達360°的旋轉起重作業，其起重量為50-500kg，跨度可達到5m。

大多數旋臂起重機都可直接在現有地面上用螺栓固定，不需增加特殊的地基；

銷軸上特別配了一個止動銷，可有效防止懸臂意外上揚；

配有葫蘆小車；

轉軸軸承使轉動異常輕鬆。



The GORBEL modular jib crane (MSJ360) is the perfect replacement for traditional, bulky I-beam jib cranes.

The jib crane provides good working coverage in a circular working area and supports tool balancers, pneumatic balancers, vacuum lifting tools and hoists.

When the ground installation method is adopted, the swing arm lifting device can realize a rotary lifting operation of up to 360°, and its lifting weight is 50-500kg, and the span can reach 5m.

Most jib cranes can be bolted directly to the existing ground without the need to add special foundations;

The pin shaft is specially equipped with a stop pin to prevent the cantilever from rising unexpectedly;

Equipped with a gourd trolley;

The shaft bearing makes the rotation extremely easy.





可直接在現有的地面上用螺栓固定，不需增加特殊的地基

銷軸上特別配了一個止動銷，可有效防止懸臂意外上揚

起重量為50kg-500kg

跨度可達5m

360° 旋轉



Can be bolted directly to the existing floor without adding special foundation

Specially equipped with a stop pin on the pin to prevent the cantilever from rising unexpectedly

Starting weight is 50kg-500kg

Span up to 5m

360° rotation





該產品適用於無法使用一台主要的起重機完全覆蓋的圓形區域，是理想的工具平衡器、氣動平衡器、葫蘆、真空提升工具和焊接進料裝置的支撐設施。



Suitable for use in circular areas that cannot be completely covered by a major crane, the product is ideal for tool balancers, pneumatic balancers, hoists, vacuum lift tools and welding feeders.
